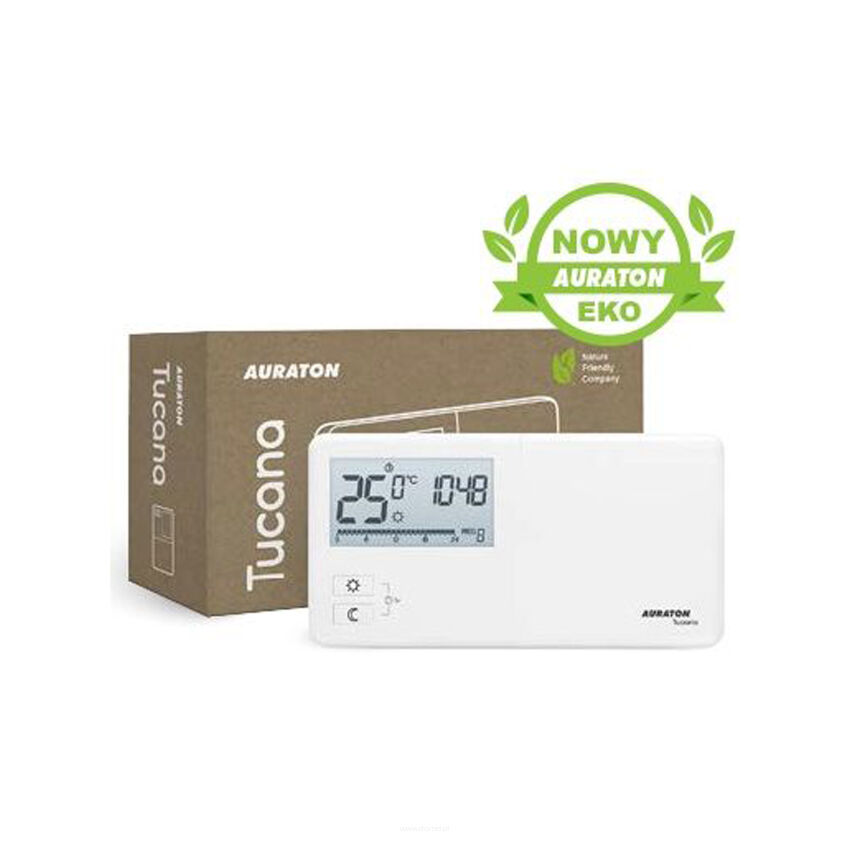

Control panel room regulator thermostat AURATON TUCANA (AURATON 2025)

Produkty > Sterowniki i regulatory > Temperature controllers, controllers room panels

Code: 7419
Producer: AURATON
Producer code: 5907634882093

Weight: 1.20kg
Price gros: €46.44
Price net: €37.76

WEEKLY WIRED TEMPERATURE CONTROLLER AURATON TUCANA SUCCESSOR TO AURATON 2025 CONTROLLER

PRODUCT CODE: 7419

Special features:

excellent quality
official representative
intuitive operation
batteries included

TECHNICAL DATA

Operating temperature range 0 – 45°C
Temperature control range 4 – 30°C
Hysteresis ±0.2°C / ±0.4°C
Number of temperature levels 2 + holiday
Anti-freeze temperature YES (modifiable: 4 – 10°C)
Operating cycle Weekly programmable
Operation status control LCD screen
Maximum load current ~8A
Controller power supply 2 AA 1.5V batteries
Protection rating IP 20

Operating principle

The weekly wired temperature controller is equipped with a heating device operating time counter. AURATON Tucana allows the user to manage 7 independently configurable programs, with 4 independently settable temperatures – day, night, anti-freeze, holiday. The LCD display has 3 backlight colors to choose from and is adapted for use in poorly lit rooms. The temperature controller is equipped with a PWM operating mode, which involves cyclic switching on

and off of the heating device, minimizing temperature fluctuations. The PWM algorithm maintains thermal comfort in the room by anticipating the heating system's behavior, while also ensuring minimal energy consumption.

Features

Heating device operating time counter

4 independently settable temperatures (day, night, anti-freeze, holiday)

LCD display adapted for use in poorly lit rooms

10 temperature programs (7 modifiable by the user)

Holiday mode – setting an independent temperature for up to 99 days

PWM operating mode

The correct operation of AURATON Tucana is greatly influenced by its location. Placement in a spot without air circulation or in direct sunlight may cause incorrect temperature control. AURATON Tucana should be installed on an internal wall of the building (partition wall), in an environment with free air circulation. Avoid proximity to heat-emitting devices (TV, heater, refrigerator) or locations directly exposed to sunlight. Problems in proper operation may be caused by proximity to doors, exposing AURATON Tucana to possible vibrations.

WEEKLY, WIRED TEMPERATURE CONTROLLER AURATON TUCANA SUCCESSOR TO THE AURATON 2025 CONTROLLER

PRODUCT CODE: 7419

Special features:

excellent quality
official representative
intuitive operation
batteries included

TECHNICAL DATA

Operating temperature range 0 – 45°C
Temperature control range 4 – 30°C
Hysteresis ±0.2°C / ±0.4°C
Number of temperature levels 2 + holiday
Anti-freeze temperature YES (modifiable: 4 – 10°C)
Operating cycle Weekly programmable
Operation status control LCD screen
Maximum load current ~8A
Controller power supply 2 AA 1.5V batteries
Protection rating IP 20

Operating principle

The weekly, wired temperature controller is equipped with a heating device operating time counter. AURATON Tucana allows the user to manage 7 independently configurable programs, with 4 independently settable temperatures – day, night, anti-freeze, holiday. The LCD display has 3 backlight colors to choose from and is adapted for use in dimly lit rooms. The temperature controller is equipped with a PWM mode, which involves cyclic switching on and off of the heating device, minimizing temperature fluctuations. The PWM algorithm maintains thermal comfort in the room by anticipating the heating system's behavior, while also ensuring minimal energy consumption.
