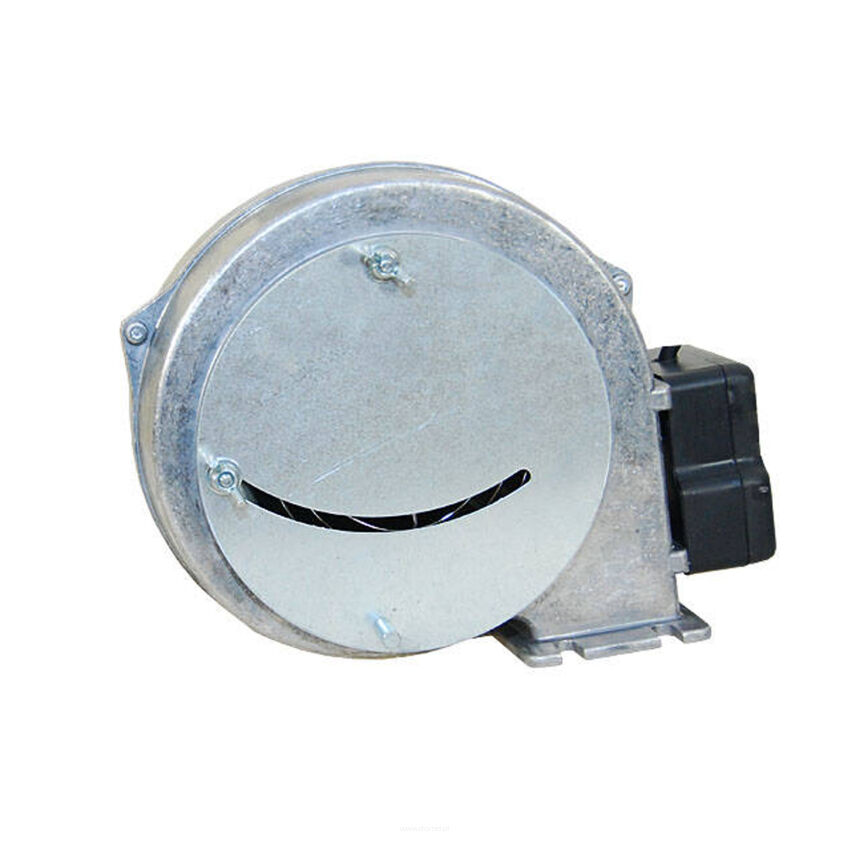

Blower for boiler, WPA 06 P fan with inlet damper

Produkty > Dmuchawy i wentylatory > Boiler blower with connection frame 65 x 105 mm

Code: 8743
Producer code: 2001230087432
Weight: 2.44kg
Price gros: €45.51
Price net: €37.00

Purpose - the fan is intended for blowing air into the combustion chambers of central heating boilers.
It can also be used for general ventilation of rooms and technological devices.
It can operate at ambient temperatures from 0 to +40 °C.

Construction - the fan consists of two parts of an aluminum housing,
in which a motor with an external rotor is mounted.
The inlet opening is protected by a mesh.
The outlet opening is finished with a flange with holes for mounting.

Dimensions:

Blower outlet opening: 68 x 47 mm

Frame: 105 x 64 mm

Screw spacing: 92 x 33 mm

TECHNICAL DATA

Type	WPA 06
Motor type	R2E 120-AR38-40
Motor type	RF2C-120/062 K010
Rated voltage:	230V/50Hz
Max pressure	360 Pa
Max flow rate	255 m3/h
Rotational speed	2350 rpm
Power consumption	83 W
