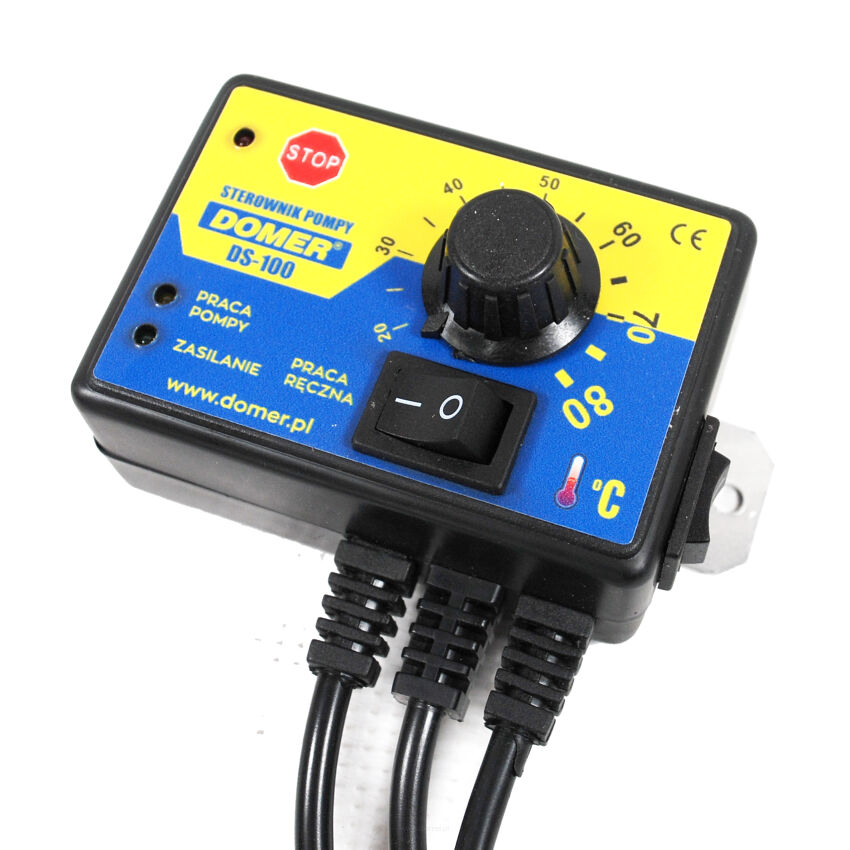

Controller for central heating pump DS-100 regulator for dust boiler

Produkty > Sterowniki i regulatory > Temperature controllers, controllers for pumps
main main
Code: 12914
Producer: DOMER
Producer code: 5902429311369
main
Weight: 2kg
Price gros: €15.50
Price net: €12.60

TECHNICAL DATA

  • Temperature adjustment range (set temperature): 20 C - 80 °C
  • Hysteresis: 2 °C
  • Power supply voltage: 230 V / 50 Hz ± 10 %
  • Power consumption: < 1 W
  • Operating temperature: 20 - 70 °C
  • Temperature sensor: resistive
  • Cross-section of connection wires: 3 x 0.75 mm2
  • Sensor cable length: 0.9 m
  • Power cable length: 1.3 m
  • Pump power cable length: 1.3 m
  • Pump power supply: 230 V / 50 Hz
  • Dimensions (width x height x length): 59 mm x 40 mm x 85 mm
  • Maximum output load current: 1A (relay)

PRINCIPLE OF OPERATION

The DS-100 DOMER controller is designed to control the circulation pump of the central heating water system. The controller's task is to switch on the pump if the temperature exceeds the desired value. This prevents unnecessary pump operation, which saves electrical energy (savings depending on the degree of furnace use can reach up to 60%) and extends the pump's lifespan. This increases its reliability and reduces operating costs.

The pump activation temperature is adjustable with a potentiometer in the range of 20 degrees C to 80 degrees C. The pump switches off if the actual temperature drops 2 degrees Celsius below the set temperature (adjusted by the potentiometer). Besides the potentiometer, the S-100 controller has two switches. The first switch is used to turn on the controller (indicated by a green LED lighting up), while the second red switch is for manual pump activation. Two additional indicator LEDs signal: yellow - operation, red - pause (standby).


TECHNICAL DATA

  • Temperature adjustment range (set temperature): 20 C - 80 °C
  • Hysteresis: 2 °C
  • Supply voltage: 230 V / 50 Hz ± 10 %
  • Power consumption: < 1 W
  • Operating temperature: 20 - 70 °C
  • Temperature sensor: resistive
  • Cross-section of connection wires: 3 x 0.75 mm2
  • Sensor cable length: 0.9 m
  • Power cable length: 1.3 m
  • Pump power cable length: 1.3 m
  • Pump power supply: 230 V / 50 Hz
  • Dimensions (width x height x length): 59 mm x 40 mm x 85 mm
  • Maximum output load current: 1A (relay)

PRINCIPLE OF OPERATION

The DS-100 DOMER controller is designed to control the circulation pump of the central heating water system. The controller's task is to switch on the pump if the temperature exceeds the desired value. This prevents unnecessary pump operation, which saves electrical energy (savings depending on the degree of furnace use can reach up to 60%) and extends the pump's lifespan. This increases its reliability and reduces operating costs.

The pump activation temperature is adjustable with a potentiometer in the range of 20 degrees C to 80 degrees C. The pump switches off if the actual temperature drops 2 degrees Celsius below the set temperature (adjusted by the potentiometer). In addition to the potentiometer, the S-100 controller has two switches. The first switch is used to turn on the controller (indicated by a green LED), while the second red switch is for manual pump activation. Two additional indicator LEDs signal: yellow - operation, red - pause (standby).
