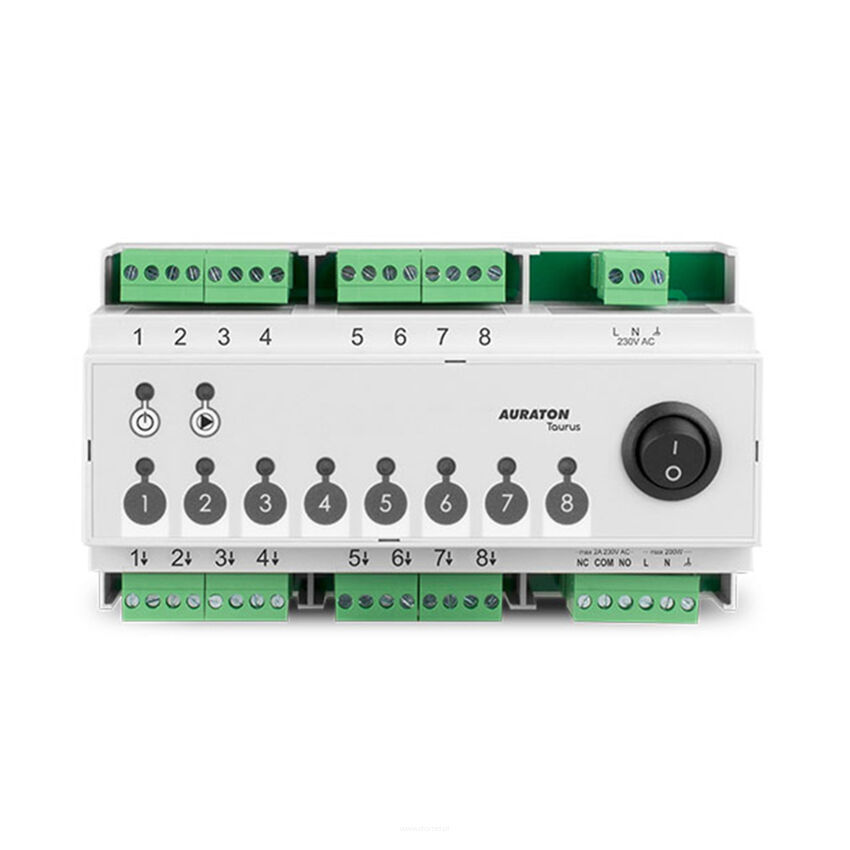

Wired control strip AURATON TAURUS

Produkty > Sterowniki i regulatory > Temperature controllers, controllers room panels
main main
Code: 15295
Producer: AURATON
Producer code: 5907634882017
main
Weight: 0.50kg
Price gros: €77.35
Price net: €62.89

Product description:

Control strip for underfloor heating actuators designed for installation in installation cabinets. AURATON Taurus works with wired temperature controllers. It allows simultaneous control of the central heating pump and the heating device.

Features:

  • Easy installation – connectors are equipped with removable terminals. They can be disconnected before making cable connections
  • 8 heating zones (up to 3 AURATON actuators per zone)
  • Heating device activation delay function (approx. 3 min.)
  • Ability to monitor each heating zone via the wired AURATON temperature controller
  • Control of the central heating circulation pump and boiler (potential-free contacts)
  • DIN rail mounting



Technical data:

  • Power supply - 230V AC, 50Hz, 1.5W
  • Operating temperature range: 0 – 40°C
  • Operation status indication by LED diodes
  • Number of independently controlled heating zones: 8
  • Relay load capacity max. 250V AC, max. 2 A (potential-free contacts COM, NO, NC)
  • Control output load capacity for heads 230V max. 30 W, up to 3 AURATON Vela actuators per zone
  • Central heating pump output load capacity 230V max.: 200 W
  • Relay and pump activation delay approximately 3 minutes
  • Protection rating IP20
  • Recommended mounting location on the DIN rail of the distribution box
