Screw feeder retort for rotary furnace boiler 25 KW eco-pea coal dust Domer Pancerpol switch L/R
Produkty > Podajniki opału do kotłów > Retort feeders
Producer: DOMER
Producer code: 5902429311253
Weight: 100kg
Price gros: €659.48
Price net: €536.16
Special features:
- universal feeder for pea coal and fine coal
- rotary firebox
- maximum power 25 kW
- gear motor has a right-left rotation switch
- Polish production
- best on the market
FEEDER DIMENSIONS:
- total length: 996 mm
- width of the connection plate: 250 mm
- height of the connection plate: 355 mm
- length of the flange mounting the loading basket: 240 mm
- width of the flange mounting the loading basket: 220 mm
- spacing of mounting holes for the loading basket: 190 x 210 mm
- diameter of holes in the basket frame: Ø 13
- firebox diameter: 274 mm
- distance from connection plate to end of firebox: 380 mm
SCREW DIMENSIONS:
- length of screw shaft: 700 mm
- total length of screw: approx. 957 mm
- thickness of screw coil: 5 mm
- shaft diameter: 25 mm
- screw diameter with winding: 84 - 85 mm
- pitch of screw coil: about 80 mm
- length of shaft for mounting in gear motor: 180 mm
- connection method with gear motor: cotter pin
- thickness of screw pipe - Ø 100 mm
APPLICATION

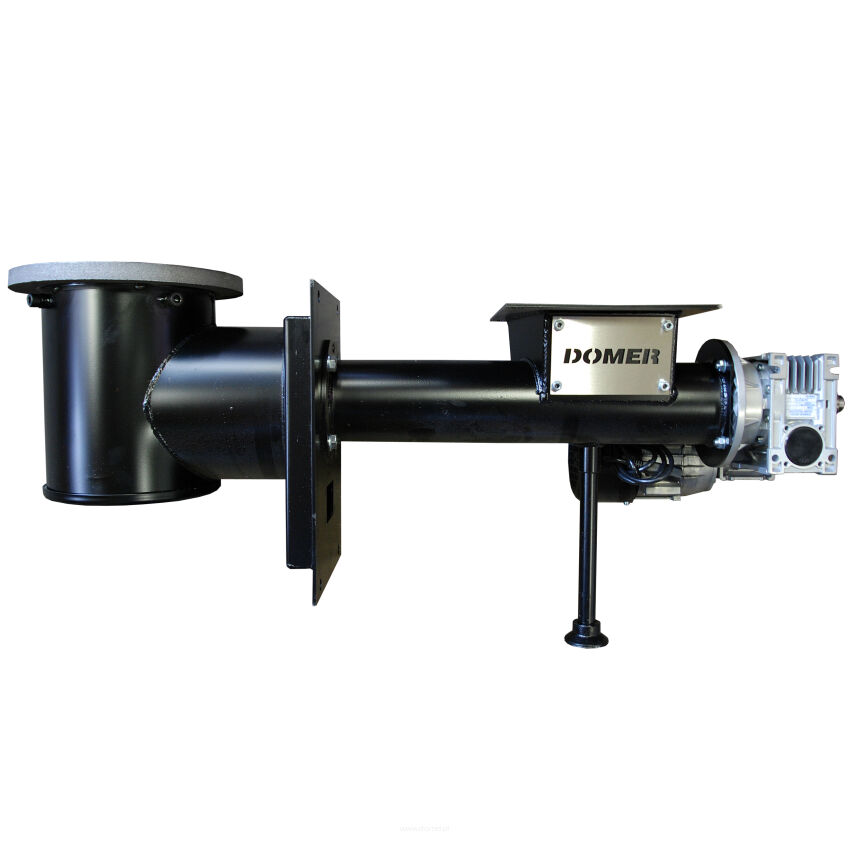

The feeder is equipped with a Besel motor (photos are for illustrative purposes only).
The Domer screw feeder with a power of 25 kW is equipped with a gearbox from Ewmar-ness and a Besel motor. The Besel motor with enhanced operating parameters and increased durability guarantees quiet and trouble-free operation for many years. The carburizing sleeve of the gear motor, made to special order, protects the system from seizing.
The feeder has a steel body and a steel screw equipped with a tip shaped like a bent claw to facilitate scraping fuel from the bent part of the elbow. Additionally, the feeder is equipped with a toothed ring and a firebox made of refractory cast iron, ensuring long-lasting and trouble-free operation. The feeder can transport fuels such as hard coal of pea size with granulation 5 - 25 mm. Feeders from the Domer series are characterized by low service and maintenance costs. They are environmentally friendly, easy to operate and maintain.
These feeders are used in boilers heating areas up to 200 m2. However, this depends on the building's volume, insulation level, and the fuel used.
THE SOLD SET INCLUDES:
- screw feeder (steel) with screw (steel)
- burner in the form of a cast iron firebox (round)
- gear motor (Ewmar-Ness)
- power cable for gear motor, 3 m long
- foot
FEEDER BURNS ECO-PEA COAL AND FINE COAL
Special features:
- universal feeder for pea coal and fine coal
- rotary firebox
- maximum power 25 kW
- gear motor has a right-left rotation switch
- Polish production
- best on the market
FEEDER DIMENSIONS:
- total length: 996 mm
- width of the connection plate: 250 mm
- height of the connection plate: 355 mm
- length of the flange mounting the loading basket: 240 mm
- width of the flange mounting the loading basket: 220 mm
- spacing of mounting holes for the loading basket: 190 x 210 mm
- diameter of holes in the basket frame: Ø 13
- firebox diameter: 274 mm
- distance from connection plate to end of firebox: 380 mm
SCREW DIMENSIONS:
- length of screw shaft: 700 mm
- total length of screw: approx. 957 mm
- thickness of screw coil: 5 mm
- shaft diameter: 25 mm
- screw diameter with winding: 84 - 85 mm
- pitch of screw coil: about 80 mm
- length of shaft for mounting in gear motor: 180 mm
- connection method with gear motor: cotter pin
- thickness of screw pipe - Ø 100 mm
APPLICATION
The feeder is equipped with a Besel motor (photos are for illustrative purposes only).
The Domer screw feeder with a power of 25 kW is equipped with a gearbox from Ewmar-ness and a Besel motor. The Besel motor with enhanced operating parameters and increased durability guarantees quiet and trouble-free operation for many years. The carburizing sleeve of the gear motor, made to special order, protects the system from seizing.
The feeder has a steel body and a steel screw equipped with a tip shaped like a bent claw to facilitate scraping fuel from the bent part of the elbow. Additionally, the feeder is equipped with a toothed ring and a firebox made of refractory cast iron, ensuring long-lasting and trouble-free operation. The feeder can transport fuels such as hard coal of pea size with granulation 5 - 25 mm. Feeders from the Domer series are characterized by low service and maintenance costs. They are environmentally friendly, easy to operate and maintain.
These feeders are used in boilers heating areas up to 200 m2. However, this depends on the building's volume, insulation level, and the fuel used.
THE SOLD SET INCLUDES:
- screw feeder (steel) with screw (steel)
- burner in the form of a cast iron firebox (round)
- gear motor (Ewmar-Ness)
- power cable for gear motor, 3 m long
- foot
FEEDER BURNS ECO-PEA COAL AND FINE COAL
